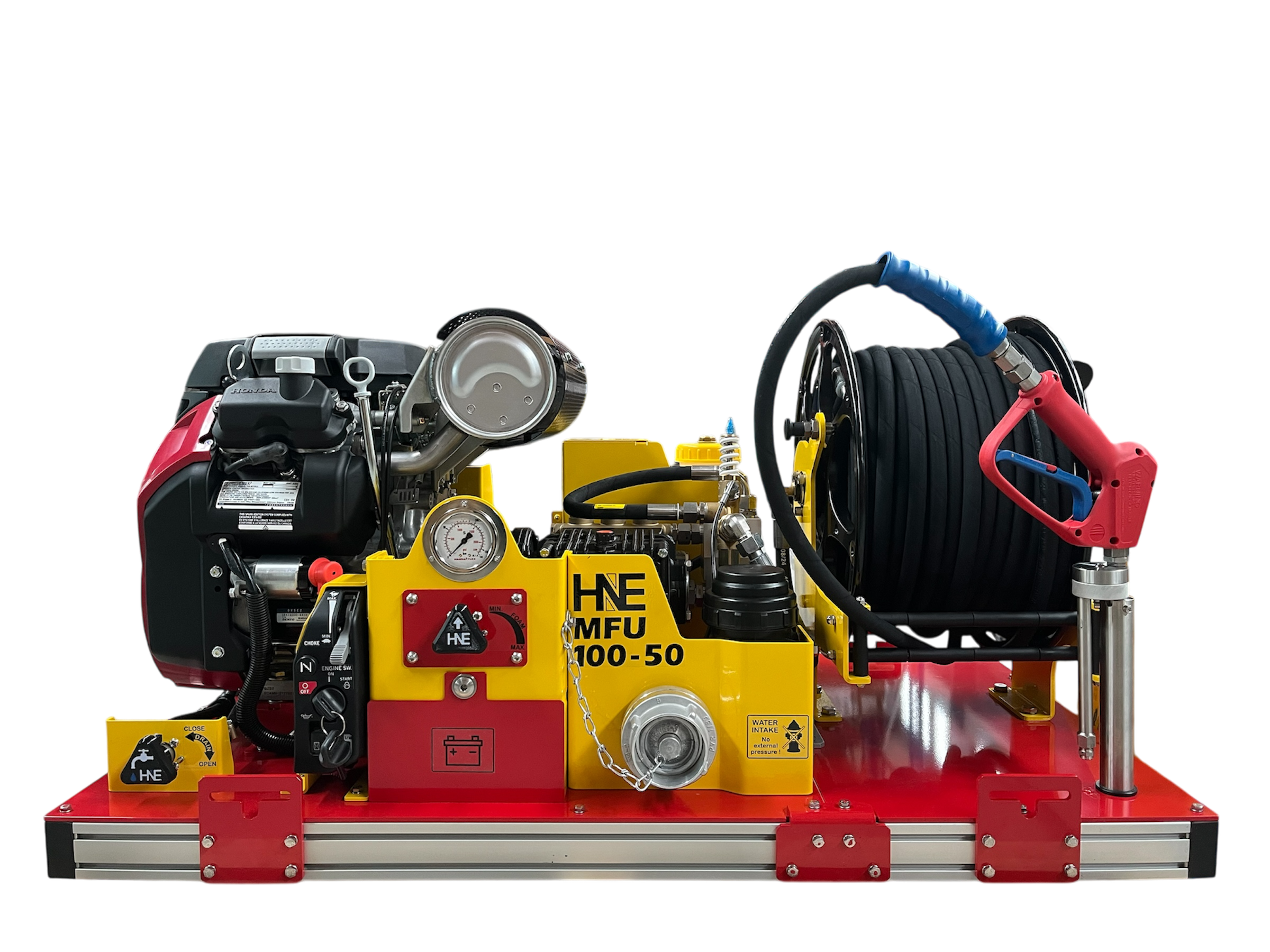

MFU 100-50 UHPS “Shark” – Ultra-High-Pressure Fire Suppression System
The MFU 100-50 UHPS “Shark” is a high-performance ultra-high-pressure extinguishing system engineered by HNE for wildfire and vegetation fire response. Specially designed for rapid and flexible deployment in forest and vegetation fire scenarios.
Key Features
- Dual-Mode Operation: instant switch between water and fluid foam via front panel control knob
- Swivel gun with dual nozzles: fine water mist and direct spray
- High flow capacity: 43 L/min at 100 bar working pressure
- Energy-independent — fully autonomous, no external power source required
- Mounts on light trucks, ATVs, boats, RIVs, and other off-road equipment
- Customizable SKID modules and various tank configurations
Technical Specifications
| Working Pressure | 100 bar |
| Flow Rate | 43 L/min |
| Throwing Range (water/foam) | Up to 20 m |
| Spray Mode Range | Up to 10 m |
| Hose Capacity | 60 m hydraulic (100 m optional) |
| Total Weight (filled) | 164 kg |
| Foam Expansion Ratio | 1:8 with 1% concentrate |
| Max Suction Height | ~2.5 m |
| Dimensions | 1270 × 673 × 587 mm |
Manufacturer: HNE Technologie AG – www.hne.ag
